Omnium by DT Swiss Rim

£50
Taxes and shipping calculated at checkout

Type:

20"
In stock and ready for shipping
Click to open expanded view

Product information

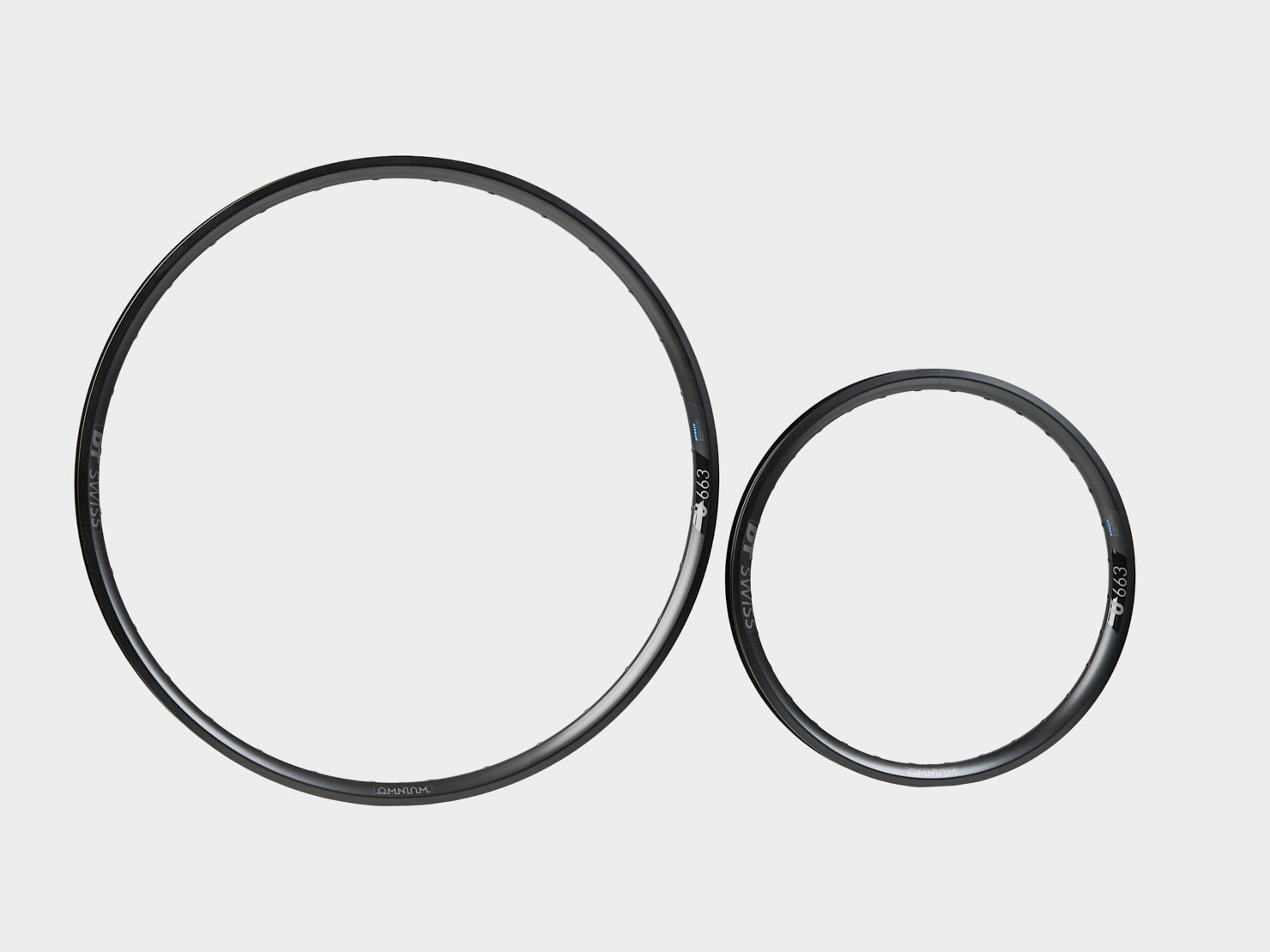

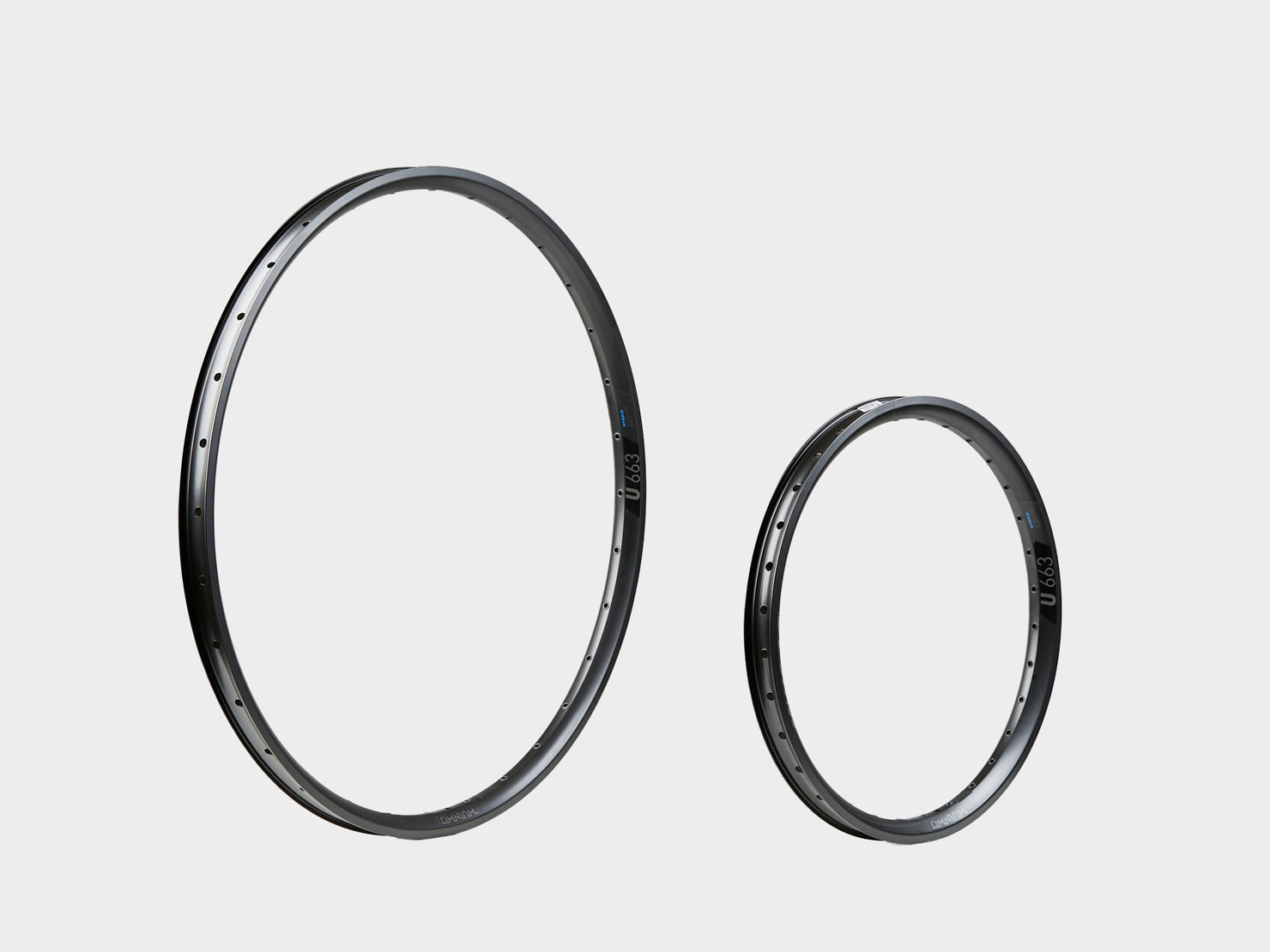

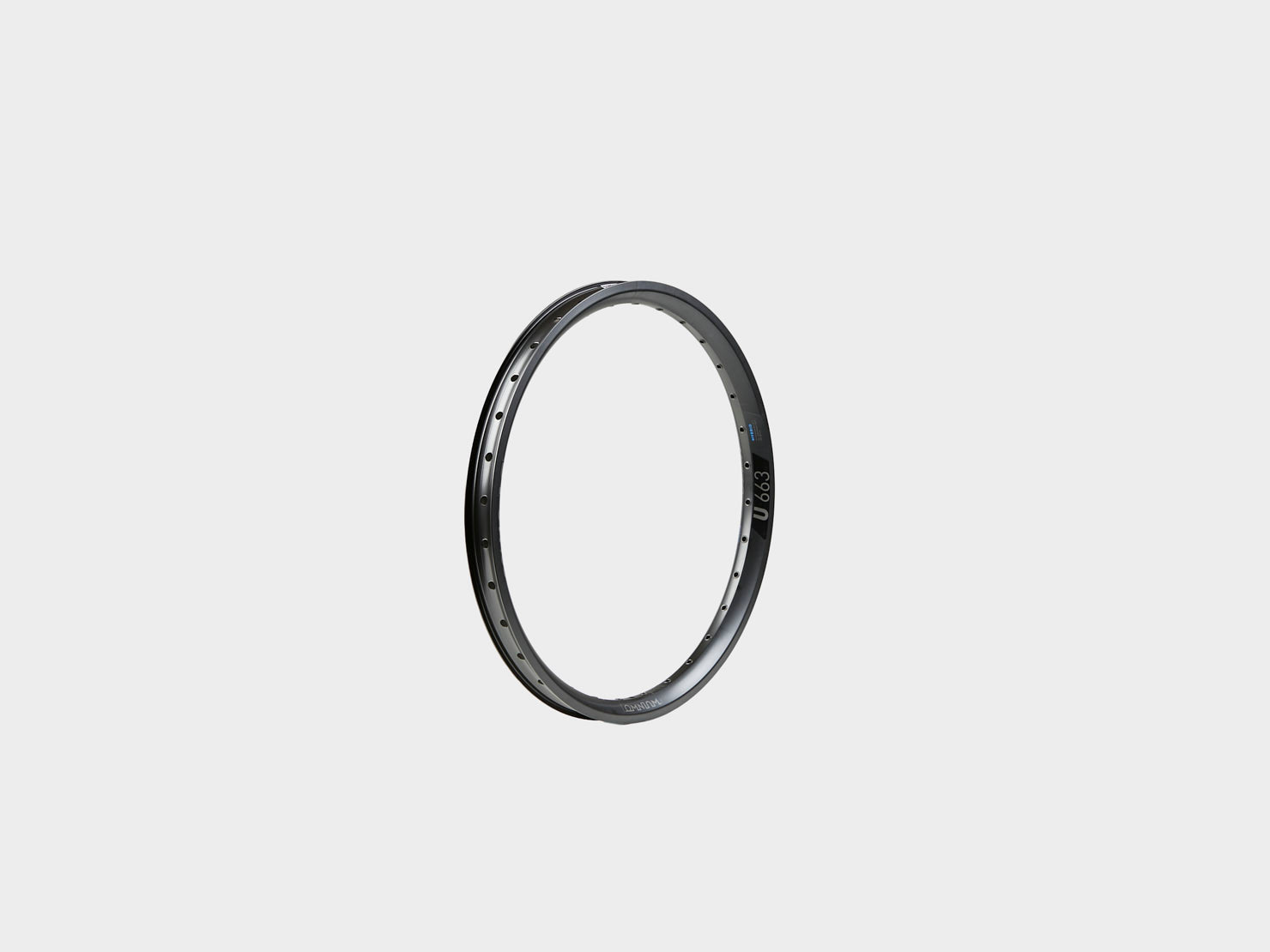

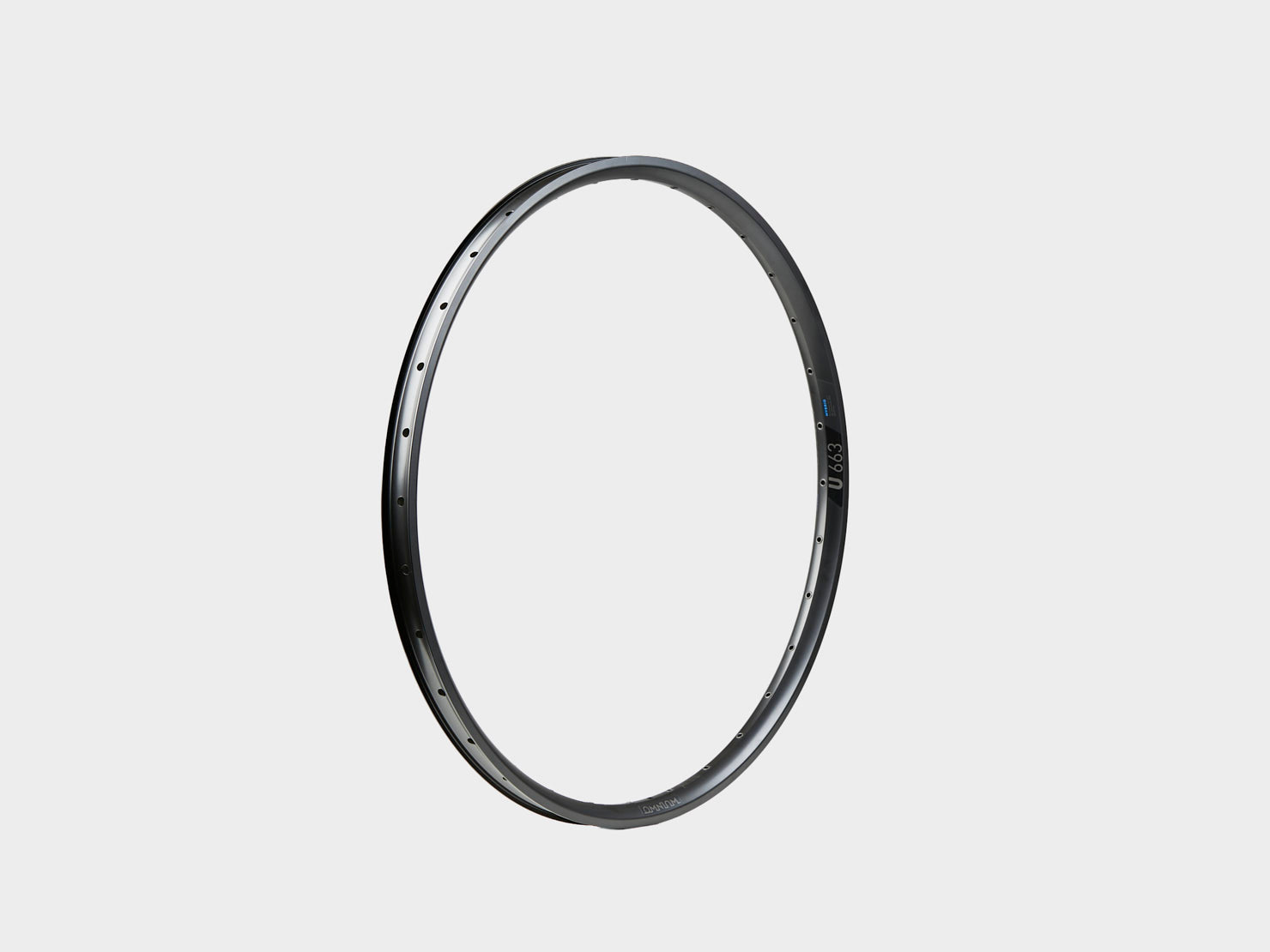

Omnium by DT Swiss Cargo Rim – Built for Urban Load-Bearing Precision

Designed to meet the daily demands of cargo cycling, the DT Swiss U663 is the foundation of the Omnium by DT Swiss wheelset — purpose-built for riders who carry more.

Crafted from high-strength aluminum and reinforced for maximum resilience, the Omnium By DT Swiss Rim is designed for smooth, confident handling whether you’re transporting tools, groceries, or gear. Tailored for Omnium’s Mini, Mini-Max, and Cargo frames, this rim provides the structural integrity needed for heavy-duty urban riding—day in, day out.

Key Features:

  • Omnium-Specific Design: Engineered to integrate seamlessly with Omnium Mini, Mini-Max, and Cargo bikes
  • Heavy Load Capacity: Supports up to 180 kg per wheel when paired with DT Swiss spokes and hubs
  • Reinforced Aluminum Construction: Built to endure the stress of fully loaded rides and rough urban terrain
  • DT Swiss Precision: Developed in partnership with DT Swiss for optimal performance and longevity
FRONT REAR
Weight 500g 760g
Max Carrying Capacity 180kg 180kg
ASTM Classification 2 2
Approved for E-Bikes Yes (max. 32Km/h or max. 250W)  Yes (max. 32Km/h or max. 250W)
Material Aluminium Aluminium
Rim Joint Pin Joint Pin Joint
Tire Interface Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC
Brake Interface Disc Disc
Rim Diameter 20″ 29″
Reference Diameter ERD 383mm 599mm
Inner Width 22mm 22mm
Outer width 25mm 25mm
Rim Height 22mm 22m
Number Of Holes 32 32
Spoke Bore Rim Black eyelet  Black eyelet
Valve hole Presta Presta
