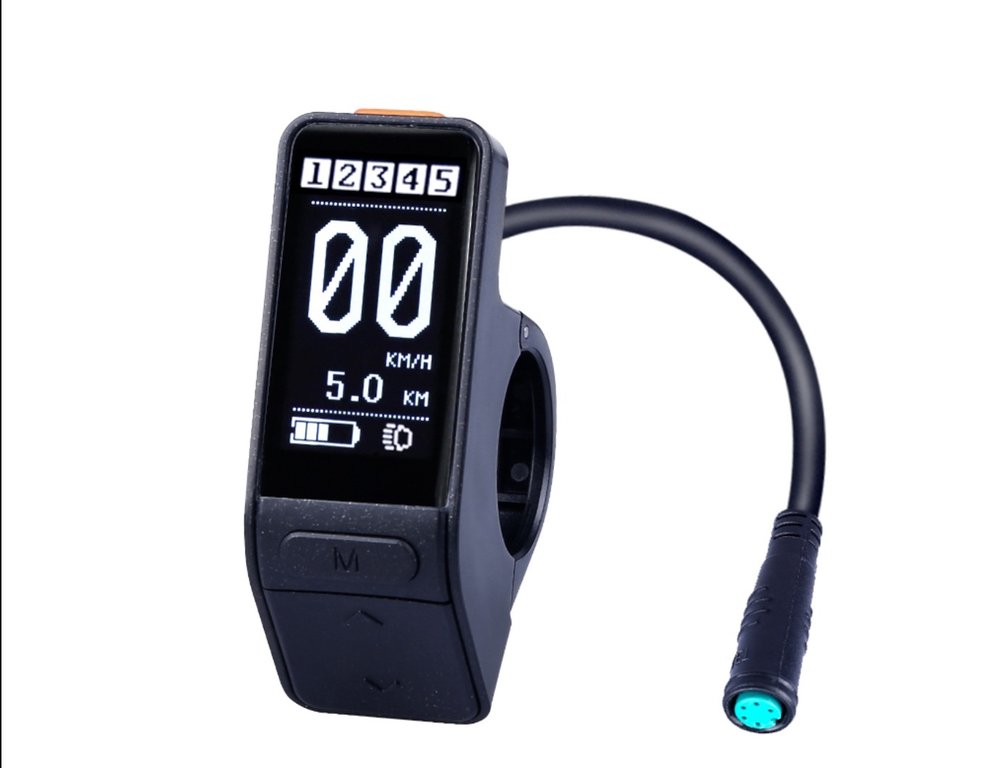

Bafang SW102 / DM03 Mini Display Unit
1 IN STOCK
The mini display that controls our electric conversion builds. Only 5 Pedal Assist Settings and a small black & white display, but it's perfect for a controller that has been tuned by us, and won't light your bike up like a xmas tree.
Specification:
- Power supply: DC 24V/36V/48V
- Rated current:12mA
- Shutdown leakage current:<1 uA
- Screen specification: 1.3" OLED (64:128px)
- Communication method:UART (default)
- Operating temperature:-20° C~60° C
- Storage temperature: -30° C~80° C
- Waterproof level: IP65
Functional overview:
- Four buttons, easy to operate.
- Use password to turn on
- Km/miles
- Speed display: Real-time speed (SPEED),maximum speed (MAX),average speed (AVG)
- Six stalls of power assist control:0-5 level (OFF-1-2-3-4-5)
- Six levels of electricity instructions:l-5 1evel power, and under voltage prompts, and provide battery BMS information.
- Headlight indicator: Headlight on/off status indication (need information from controller)
- Mileage display: Subtotal mileage (TRIP), total mileage (ODO)
- Riding time (TRIP TIME) display
- UART communication port (Micro USB),convenient for system maintenance and parameter setting
- 6km/h walk assist function
- Error code indication
Installation - Open the display lock clip, set the display in the left handlebar (standard handlebar size:φ22.2).
Adjust to a position easy to operate tighten and fix the screw by M3 hexagon. Tightening torque: 0.8N.m.*Note: Damage caused by excessive torque is not covered by the warranty. - Display connected with a controller by 5 pin connector as required drawings.
